IL-XTRU-1890: 39.4 in. Non-Anodized Aluminum Channel


The XTRU-1890 LED Profiles are an innovative way to create your own light fixtures with LED Tape Light. Suitable for surface mounting or recessed installation, these high quality profiles provide a unique way to make use of linear low voltage lighting and are the designer's choice for creating light fixtures for commercial and residential LED strip lighting.

The XTRU-1890 Aluminum Mounting Channel is used to hold LED tape light and allows you to create your own custom LED low voltage lighting scheme. Use these to illuminate glass edges and other material illumination.

Please note: These profiles are only compatible with strip light 0.5 inches wide or smaller. They are compatible with ThinGlow Standard, High Output, and RGB strip lights.

Profile Length Surface Finishing Item Number
profile1 1m/ 3.28ft (standard)
2m/ 6.56ft (standard)
2 - 6m/ 6.56ft - 19.685ft (special order)
Non-Anodized IL-XTRU-1890
IL-XTRU-3776 for mounting into grooves


End cap Stainless Steel 0963
End cap 3D 0962
End cap 3D with hole 1452

View Specification


View Order Information

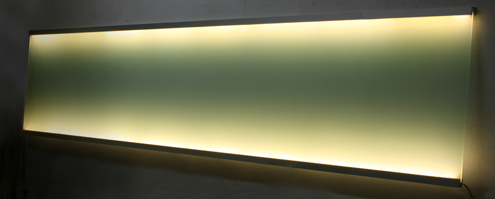

img 2

Illuminate glass or acylic edges and other 6mm (0.2") thick material edges. To be mounted to walls or ceilings. Used for illuminating sigboards, information signs, exhibition signs.

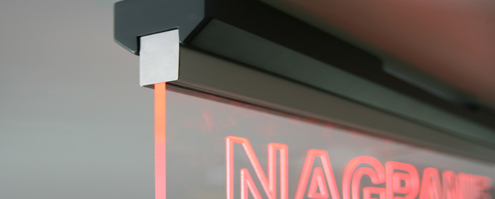

img 3

Small dimensions,combines two functions: glass or other materials can be mounted to the profile and they can also be iulluminated by LEDs (walls, floors, ceilings), modern design, environment friendly
